If you want to get the absolute best quality broadcast, you’re probably looking for some great software. In the case of Windows, one of the most popular choices is Open Broadcaster Software (OBS). Many people are initially attracted to OBS because it’s free to use thanks to being open source (though you can and definitelyshoulddonate to the projectif you enjoy using it). Luckily it’s also a feature-rich piece of software that can handle almost anything you throw at it. If you’re new to OBS or to streaming in general, it can be a little daunting at first. Here, I’ll show you how the basics and how to get your stream up and running using OBS.

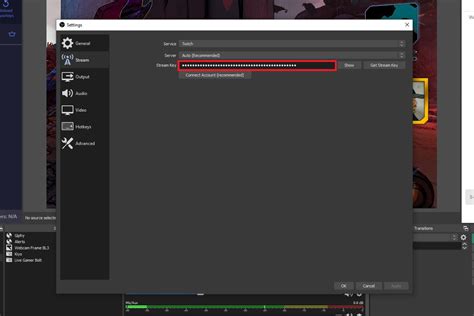

How to set up your stream key on OBS

Before you stream anything anywhere, you need to give OBS the credentials to broadcast on your channel. Exactly how you do this on the wide range of services OBS supports will vary, but I’m covering Twitch for this guide.

In all cases, you need to either generate a stream key in your account settings on the relevant service or connect your account to OBS if it’s supported as it is on Twitch. Simply logging in with your credentials is by far the easiest way, and OBS uses OAuth, so you’re not passing any of your personal login information directly to it. YouTube also has this same method of authentication.

If you’d rather use a stream key, follow these steps.

Whichever service you’re streaming to, you now need to enter the stream key into OBS. This portion will be relevant to any service you’re broadcasting to that doesn’t have a direct connection to OBS like Twitch and YouTube do. Facebook Gaming is one high-profile mention here.

OBS is now configured to stream to your channel!Nevergive your stream key to someone else, as it gives them the ability to broadcast anything using your channel. If you think someone may have gotten it, go into your account settings and regenerate a new one.

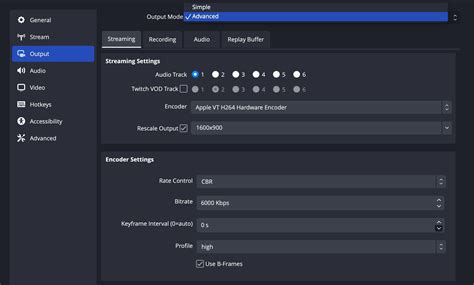

How to set up output resolution and bitrate in OBS

Now that you’re set up to stream, the first step is to set your resolution, frame rate, and bitrate. The higher each of these, the more bandwidth and horsepower you’ll need from your PC.

Get the Windows Central Newsletter

All the latest news, reviews, and guides for Windows and Xbox diehards.

If you’ve got a high-speed internet connection and a powerful PC, then you can probably stream at 1080p60 at a high bitrate. But, you also need to balance this with providing a stream that’s not going to buffer like mad for your viewers who might be on slower connections. Remember, if you’re not a partner on Twitch, you won’t have transcoding, so the experience could well be poor for viewers with slow connections.

Here’s how to adjust the settings in OBS.

Twitch has ahandy resourceon the sort of bitrates you should be using depending on your output, so it’s worth reading up and balancing these figures against the upload speed from your internet provider.

How to set up audio devices in OBS

With your video output now set up, it’s time to turn to audio. Without great audio, your stream will be a disaster, so it’s essential to get things right. If you have multiple audio devices that you want to connect, I recommend using something likeVoicemeeter Bananato manage things because it’s powerful and, once you’ve got over the initial learning curve, really easy to use.

Whatever you’re using, here’s how to set your audio up in OBS.

There are now several boxes for you to indicate to the software what your desktop audio devices are (speakers, headphones, etc.) and your microphone or other auxiliary devices. You also have options to enable push to talk or push to mute for any hardware audio device connected to your PC.

I prefer using Voicemeeter over a setup like this because it’s easier to manage on the fly, and you only need to set up a single audio device in OBS. In this case, you set the microphone to your Voicemeeter output and disable everything else.

Levels can be managed from the mixer in the main OBS window. If you’re using a console, it’s important to remember that the audio for this will be a source of its own (even if you’re using Voicemeeter), and you’ll have to manage it within OBS. Pro tip: Turn it down; it’ll be way too loud at default settings.

Razer Seiren V2 X

A clever redesign makes the new Seiren V2 X easier to live with than its predecessor while still giving a quality sound at an attractive price with no complicated setup. Just plug it in and sound good.

How to add capture cards and webcams to OBS

If you’re streaming console games, then you’ll need to add yourcapture cardas a source in OBS. Whether you’re streaming console or PC, you’ll probably also want to add a webcam, so your viewers can see your beautiful face while you play.

The good news is that both devices are added to OBS in the same way. Here’s how.

In this window, you’ll also be able to adjust some video settings such as resolution and frame rate. In the case of the capture card, you’ll want to keep it at whatever the highest you can get from the console is (1080p60 in almost all cases), but your webcam definitely doesn’t need to be 1080p.

When it’s a tiny little window on your stream, you’re wasting processing power and bandwidth this way. Drop it to something like 640x480 or 720p, and it’ll still look fine on stream.

AVerMedia Live Gamer Duo

The need for complicated setups or additional capture hardware to use a camera on stream is made obsolete by this simple, but clever card from AVerMedia.

Razer Kiyo X

Bottom line: The Razer Kiyo X is a great option for those who want a solid webcam experience without totally blowing up their bank balance, with great low-light handling, sharp image quality, and solid construction.

How to add PC game capture to OBS

If you’re going to be streaming PC games, then OBS can automatically detect these and import them for use. Set it up similarly to other sources.

You now have a couple of options. If you always play your PC games in fullscreen, you can set OBS to capture any fullscreen application in themodedrop-down box.

If you play windowed, you can manually choose the game by changing the mode tocapture specific windowand then select the game from thewindow’sdrop-down box.

How to add a stream overlay to OBS

One last thing you might want to add right from the start is an overlay to your stream.

Besides making your stream look more professional, overlays can add essential alerts such as new followers and subscribers, social media links, goals, and much more. Whichever service you use to create one, adding to OBS is the same every time. You’ll get a unique URL for your overlay. Copy this and follow these steps.

Your overlay will now appear before your very eyes. Make sure you move it towards the top of your sources list to ensure it pastes itself over the top of the other items in your stream.
